Accucold 24" Wide Built-In All-Refrigerator with Front Lock and Stainless Steel Exterior ADA Compliant - FF7LWCSSADA

Accucold by Summit Appliance offers a wide range of all-refrigerators for general purpose storage. The commercially listed FF7BIADA Series features 24" wide all-refrigerators designed for built-in installation under lower ADA compliant counters.

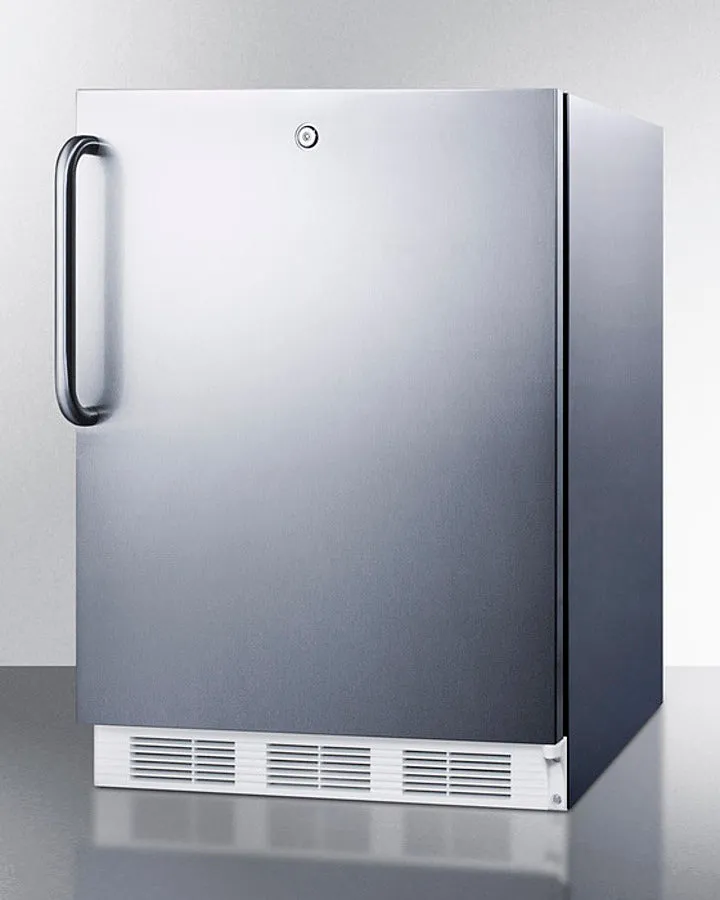

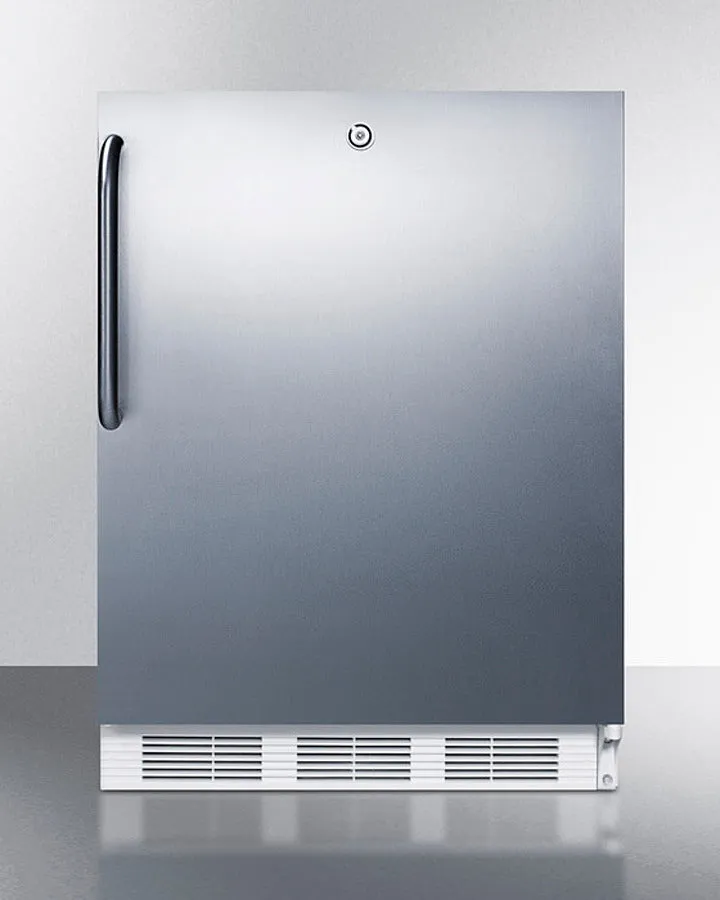

The FF7LWCSSADA is a 32" high all-refrigerator with a full 5.5 cu.ft. capacity inside a slim 24" footprint. The front-breathing design allows built-in use under counters, while the fully finished cabinet also lets this unit be used freestanding. This model has a fully wrapped stainless steel exterior cabinet and door. A curved towel bar handle in brushed stainless steel completes the professional look and a factory installed front lock offers convenient security.

Inside, the FF7LWCSSADA utilizes low maintenance automatic defrost operation. Our unique "hidden" evaporator is set behind the rear wall to create a seamless, easy-to-clean interior that also maximizes shelf space.

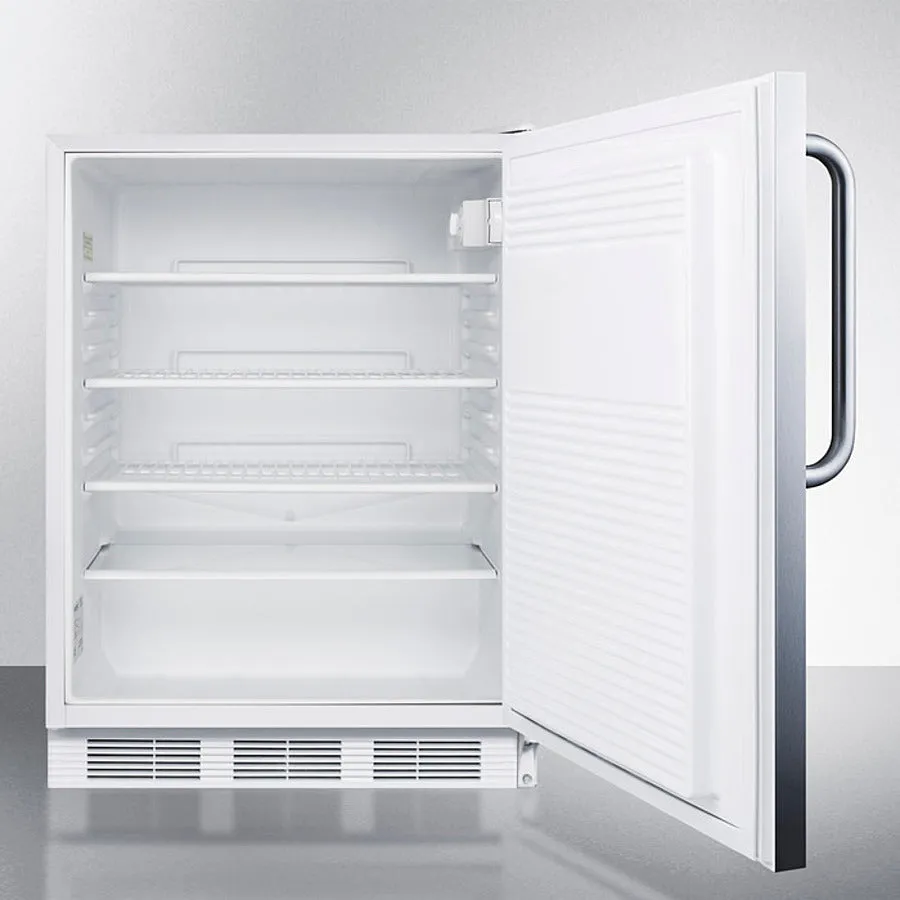

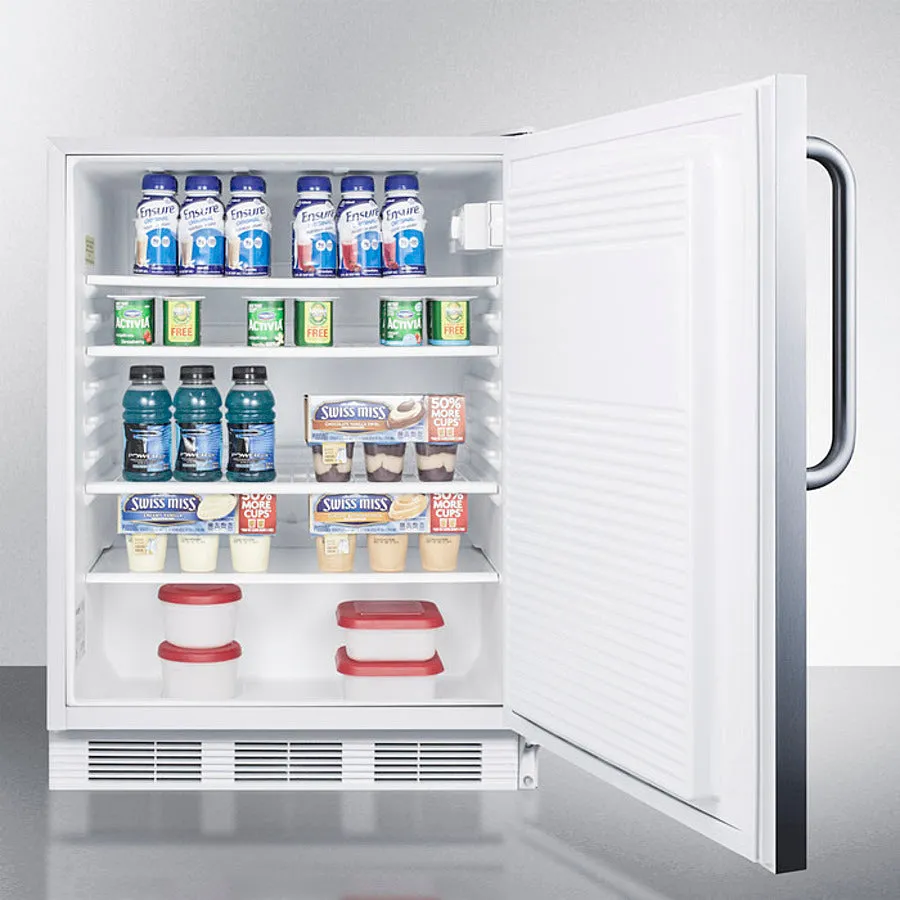

This unit has a flat door liner that allows it to accept larger trays (up to 19 1/2" x 16"). Adjustable wire shelves allow users to reconfigure the interior to accommodate a variety of sizes. The interior light is controlled by an on/off rocker switch located behind the thermostat dial.

The FF7LWCSSADA is ETL-S listed to NSF-7 standards for use in commercial establishments. For more finish options, browse the entire FF7BIADA Series.

NOTE: This unit is designed for general purpose storage, including certain food items, beverages, specimens, reagents, cold packs, and other non-critical materials. For storage of high-value vaccines, life science materials, and medical or clinical biologicals.

Features

• Commercially approved: ETL-S listed to NSF-7 Standards for use in commercial establishments
• ADA compliant: 32 inch height fits under standard ADA counters
• Slim under-counter dimensions: Ideal 24" footprint offers full 5.5 cu.ft. storage capacity in a slim fit
• Built-in capable: Make the best use of space by installing your appliance under the counter and flush with other cabinets
• Fully finished cabinet: Allows the refrigerator to be used freestanding
• Factory installed lock: Keyed lock for a secure interior
• Complete stainless steel construction: Durable design with lasting elegance
• Professional towel bar handle: Curved handle in brushed stainless steel offers a sturdy grip with professional elegance
• Automatic defrost: Reduced user maintenance with automatic defrost
• One piece interior liner: Enjoy easy clean-up with a seamless liner that won't hold a mess in hidden crevices
• Adjustable shelves: Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
• Deep shelf space: Interior accommodates large trays up to 19 1/2" x 15 1/2"
• Interior light on rocker switch: Turn the light on when you need it and off when you're done with a convenient rocker switch
• Adjustable thermostat: Dial thermostat located inside for easy temperature management
• Hidden evaporator: Cold wall design with hidden evaporator and seamless interior
• 100% CFC free: Environmentally friendly design without ozone-damaging chemicals
• CARB Compliant: Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Specifications

Overview

• Height of Cabinet: 32.0" (81 cm)
• Height to Hinge Cap: 32.25" (82 cm)
• Width: 23.75" (60 cm)
• Depth: 23.25" (59 cm)
• Depth with Handle: 25.25" (64 cm)
• Depth with door at 90°: 45.5" (116 cm)
• Capacity: 5.5 cu.ft. (156 L)
• Defrost Type: Automatic
• Door: Stainless Steel
• Cabinet: Stainless Steel
• US Electrical Safety: ETL
• Canadian Electrical Safety: ETL-C
• Sanitation: ETL-S
• Amps: 1.4
• Voltage/Frequency: 115 V AC/60 Hz
• Weight: 100.0 lbs. (45 kg)
• Shipping Weight: 105.0 lbs. (48 kg)
• Parts & Labor Warranty: 1 Year
• Compressor Warranty: 5 Years
• UPC: 761101072586

Refrigerator Features

• Door Swing: RHD
• Reversible: Factory Reversible
• Shelf Type: Wire
• Shelf Qty: 3
• Adjustable Shelves: Yes
• Thermostat Type: Dial
• Fan Type: Exterior
• Refrigerant Type: R600a
• Refrigerant Amount: 0.64oz.
• High Side PSI: 180.0
• Low Side PSI: 80.0
• Level Legs Qty: 4
• Interior Light: Yes

Dimensions

• Interior Height: 27.75" (70 cm)
• Interior Width: 20.0" (51 cm)
• Interior Depth: 17.5" (44 cm)
• Compressor Step Height: 7.0" (18 cm)
• Compressor Step Width: 20.0" (51 cm)
• Compressor Step Depth: 6.0" (15 cm)

Available Upgrades

Exterior

• Agion Door
• HG: Hospital grade cord
• SSK
• Latch for door
• LHD: Left hand door swing
• ODA: Open door alarm
• SCD: Self-closing door
• SS Hinges
• Extra key
• Alarm
• DT: Digital thermostat
• PH: Probe Hole
• TT: Installed thermometer
• DL2B: Factory installed NIST calibrated digital data logger (DDL)

Interior

• FC: Internal Fan
• FCGP: Internal fan with gel packs

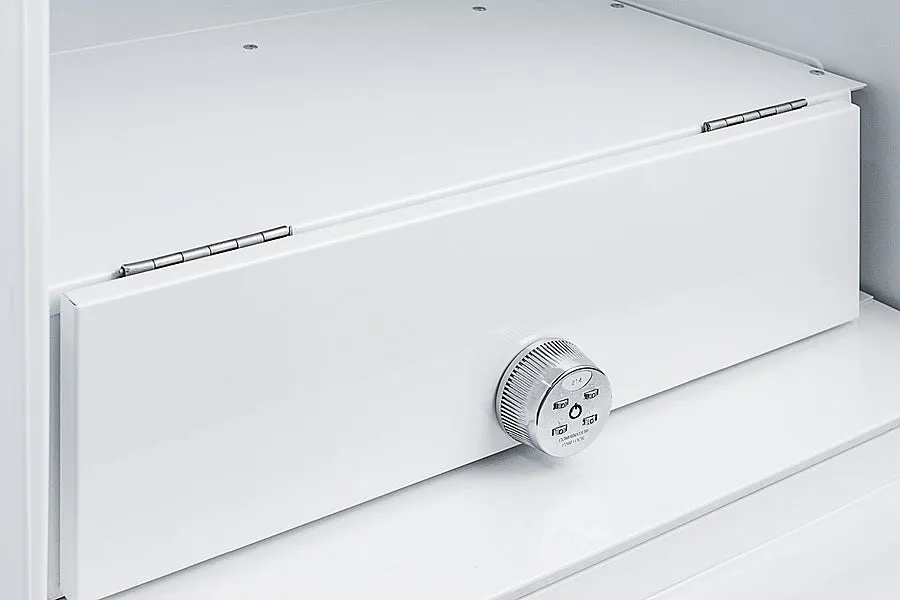

• LockBox24: Interior locking compartment

Lock

• AC Keypad
• KEYPAD

Handle

• TBC Copper Towel Bar Handle Upgrade

Door

• STO: Step-To-Open Door Pedal

Manufacturer Resources

• (.dwg)
