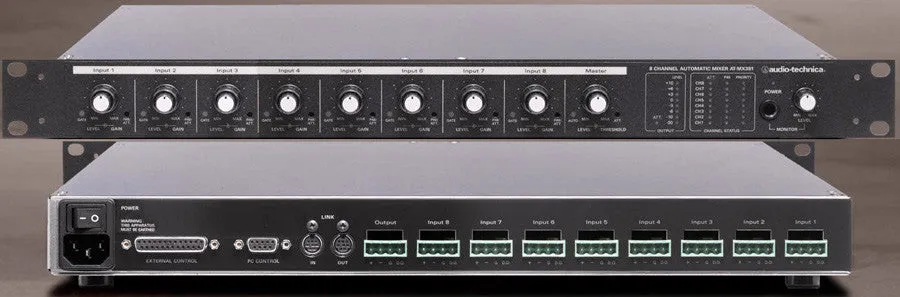

This microprocessor-controlled automatic mixer is designed to provide automatic mixing functions for installed sound, house of worship, broadcast and conference applications. Engineered for intuitive, easy-to-use operation, the new SmartMixer automatically keeps the number of open microphones to a minimum, bringing background noise and feedback under control and providing increased clarity and audio quality.

Features

• Eight balanced inputs allow use with both mic- and line-level signals
• Each input provides:
  • Phantom power (48V), individually selectable
  • Individual gain and volume controls
  • Gate attenuation (adjustable)
  • Low-cut filter (individually selectable via SmartMixer Software)
• An RS232 data port provides a connection point for a PC with included SmartMixer Software
• Compatible with Crestron and AMX systems
• External control capability enables the
• SmartMixer to activate other devices
  • Force-On - allows an external contact closure to force its associated input to turn on
  • Force-Off - allows an external contact closure to force its associated input to turn off
  • Control Voltage Out - a voltage appears when the associated input's gate opens or turns "on"
• Selectable NOMA (Number of Open Mics Attenuated) circuitry helps control feedback
• Priority pre-select feature allows priority of each microphone to be independently assigned
• Last Mic On selectable for continuous room ambiance
• Linking capability for 16 units (up to 128 channels)
• A direct output connection is available for each input
• Equipped with two audio outputs (one balanced, one unbalanced) to drive amplification systems or other equipment
• Monitor headphone output with level control
• Basic functions are configured via front panel; detailed settings through SmartMixer Software
• Mounts in a single 19" rack space via integral rack mount
