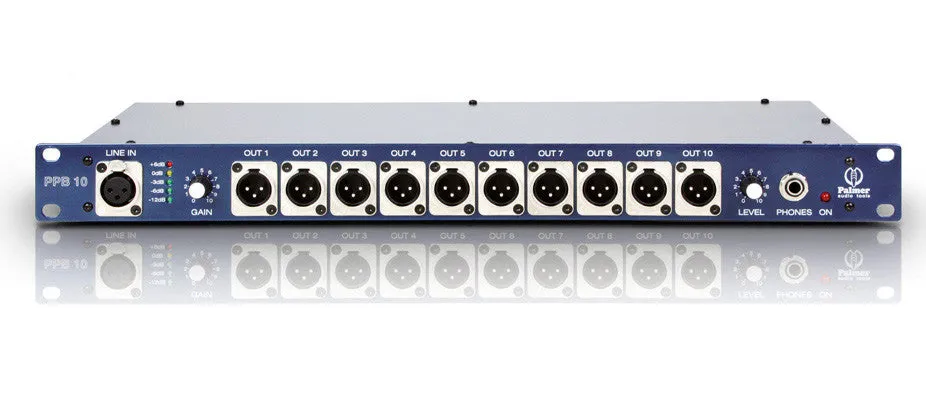

The PPB10 is a compact version of the well known and established PPB20 from Palmer. The PPB10 is a 10 channel audio splitter for press conferences and other applications. On a transformer split basis, one line input is split out to ten outputs.
Features:
- 10 Channel press patch box All inputs and outputs are balanced transformer isolated Units are cascadable
Specifications:
- Product type: splitter
- Type: line split
- split type: 1 in 10
- Channels: 1
- Inputs: 1
- input connectors: XLR
- max. input level: 20 dB
- adjustable input: yes
- number of split-outputs per canal: 10
- THRU outputs/channel: 1
- max. output level: 4 dB
- output connectors: XLR
- adjustable output: no
- transformer isolated outputs: yes
- controls: Power, phones level, input gain, ground lift
- power supply: integrated (115 / 230 V)
- cabinet material: sheet steel
- Cabinet / Housing surface: powder coated
Includes:
