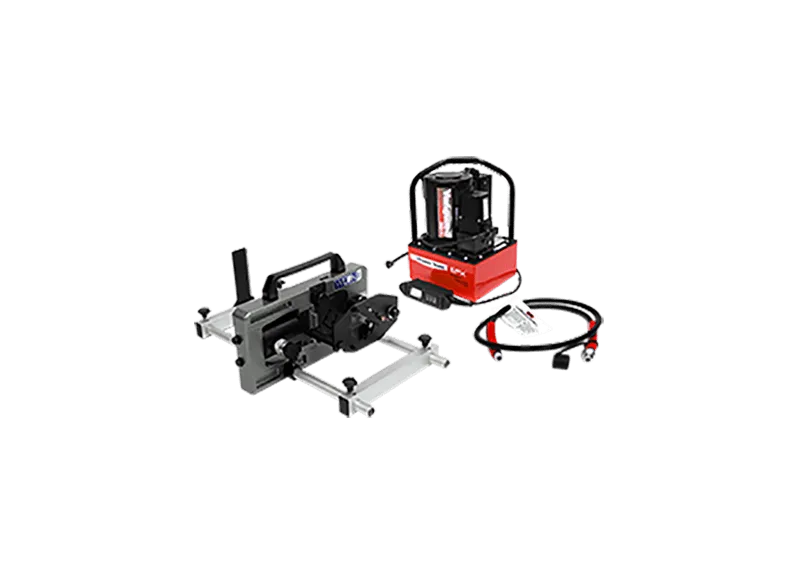

The Power Kit features a dependable SPX 10,000 psi power unit and 6’ hose with quick couplings to power the Wilton SHR™.

The hydraulic power unit has a 1 hp, single phase, permanent magnet motor to power a single acting cylinder. The powerful 30 Ton hydraulic cylinder pushes through tough materials with ease. The unit is portable to move with you to wherever the work needs done and is equipped with a roll cage to protect the unit as well as a rocker-switch cabled remote for easy operation. No mess and no spark means increased safety and maximum productivity.

Features

Blade sets available for shearing Back-to-Back, Deep Only and Cooper B-Line® 4D21 & 4D22 strut
Fast 3 second cut with no need for deburring or other secondary operations
Includes two support rods with 17" measurement scale from backstop to cut
Measuring system to easily monitor cut lengths
Precision machined ductile iron frame built to withstand rugged use
Produces clean straight cuts every time
Quick blade set change requires no extra tools
Single blade set available for shearing 1/4", 3/8", 1/2" and 5/8" threaded rod
Standard blade set shears 1-5/8" and 7/8" strut
Support rods can be replaced with standard 1" O.D. pipe for longer shearing applications
